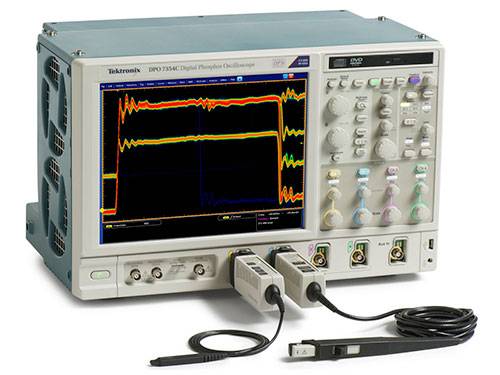

Scalable Performance Oscilloscope. Tektronix UK

Description

1. Bandwidths from 500 MHz to 3.5 GHz with user selectable bandwidth limit filters. Achieves more accurate characterization of designs by optimizing the oscilloscope performance individually by channel, based on the frequency content of the signal being measured. 2. Up to 40 GS/s sample rate. Accurately sample your signal, ensuring that all frequency content is being acquired and displayed. 3. FastAcq® with Digital Phosphor display. Quickly discover glitches and infrequent events with Tektronix proprietary FastAcq technology. A maximum capture rate of >250,000 waveforms/s shows elusive anomalies fast. 4. Pinpoint® triggering.Rapidly capture signal anomalies with over 1400 available trigger combinations, including setup/hold, serial packet, and pattern lock for serial data streams up to 1.25 Gb/s. Optional Visual Trigger enables graphical trigger definition. 5. Built-in Analysis Tools. Analyze your device with 53 automated measurements, measurement statistics, histograms, advanced waveform math, user-definable filters, and custom MATLAB and .NET math plug-ins. 6. Serial triggering and analysis options. Quickly debug common serial buses with automated trigger, decode and search – I2C, SPI, RS-232/422/485/UART, USB2.0, Ethernet, MIL-STD-1553B, CAN, LIN and FlexRay. 7. Application Software Packages. Transform your oscilloscope for specialized applications with jitter and eye analysis included standard and over 30 optional software packages for power analysis, serial compliance, RF analysis, memory and more. 8. Offline Waveform Analysis. Enables better time and resource utilization; view, measure, and analyze data captured in your lab, independent of scope hardware with TekScope AnywhereTM
