Dionex Rapid Separation LC

Description

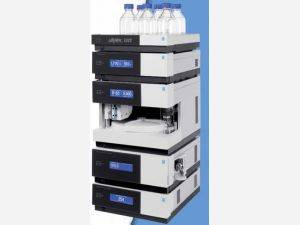

The Thermo Scientific Dionex UltiMate 3000 Rapid Separation LC (RSLC) systems integrate unique hardware features for ultrafast separations and excellent resolution on columns with small particles. In addition, they are characterized by a maximum level of reliability and flexibility. For more product information please visit the UltiMate™ 3000 UHPLC systems and solutions webpage. •Thermo Scientific Dionex SmartFlow pulsation-free flows at flow rates up to 8 mL/min at pressures up to 15,000 psi (103.4 MPa). •High-pressure or low-pressure gradient proportioning •Easily adjustable system gradient delay volume supporting a wide range of LC applications •In-line split-loop injections for 15 second, no-sample-loss injections •Column compartment temperatures up to 110 °C for reduced system backpressure •Data collection rates up to 200 Hz with a wide range of optical detectors including three UV variants and fluorescence •Full UV spectra data even at 200 Hz (diode array detection) •Run both ultrafast separations and conventional LC methods

The UltiMate 3000 RSLC systems allow you to work over an extensive flow-pressure footprint from 100 µL/min to 8 mL/min (RSLC) or 20 nL/min to 2.5 mL/min (RSLCnano) and 800 bar. This covers the full range of HPLC or nano HPLC applications, including conventional and ultrafast LC, on one system platform.

The Thermo Scientific Dionex Rapid Separation Autosampler allows robust 500 μL injections over the full backpressure range. In addition, it handles a multitude of different sample formats and supports a maximum of 1167 samples. The Thermo Scientific Dionex RLSCnano Wellplate Sampler extends these capabilities to pressures up to 1000 bar over a wide injection range, from 20 nL to 125 µL.

The RSLC system column compartment can be upgraded easily and converted with different column switching valves. The compartment handles up to 12 columns (depending on column dimensions) up to 30 cm length. UV detectors come with a wide variety of different flow cells. The NCS-3500RS module for the Thermo Scientific Dionex RSLCnano system provides a dual-gradient pump and column compartment in one housing. This unique combination allows you to tune your separation for the highest resolution or the fastest analysis time, all within one module.
